MV 90 EPRONAX AL/ EPR/ WS/ LLDPE 35 kV 100% I.L.

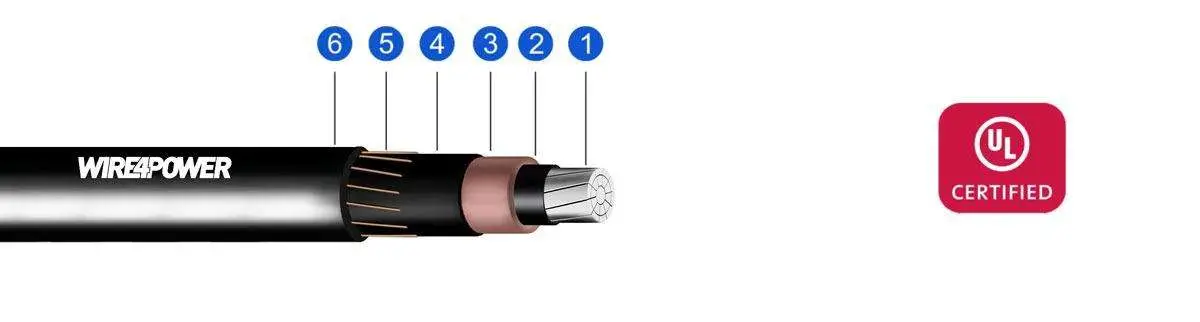

Construction
1- Conductor: Class B compact stranded 1350 aluminum as per ASTM B-400.
2- Conductor shield: Extruded thermoset semi-conducting stress control layer.
3- Insulation: Ethylene propylene rubber (EPR).
4- Insulation shield: Extruded thermoset strippable semi-conducting insulation shield.
5- Copper wires shield: one-third neutral concentric round annealed bare copper wires helically applied over the insulation shield.
6- Jacket: black flame retardant, sunlight and oil resistant I polyvinyl chloride (LLDPE).
Standards
STM B-400 - Standard Specification for Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-3 - Standard Specification for Soft or Annealed Copper Wire
UL 1072 - Medium-Voltage Power Cables
ICEA S-93-639 - 5-46 kV Shielded Power Cable for use in the Transmission and Distribubtion of Electric Energy
Data
ALUMINUM CONDUCTOR, 35 kV 100 % INSULATION LEVEL, 90 MILS
| PRODUCT CODE | COND. SIZE (AWG or kcmil) | NOMINAL CONDUCTOR DIAMETER (inches) | NOMINAL INSULATION DIAM.(inches) | NOMINAL INSULATION SHIELD DIAM. (inches) | NOMINAL DIAMETER OVER JACKET (inches) | APPROX. WEIGHT (lb/kft) | AMPACITY (A) | CONDUIT SIZE (inches) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ALUMINUM | COPPER | TOTAL | CONDUIT IN AIR (1) | UNDERGROUND DUCT (2) | |||||||
| 829901048 | 1/0 | 0.33 | 1.081 | 1.144 | 1.436 | 223 | 196 | 2131 | 150 | 155 | 3 ½ |
| 829901050 | 2/0 | 0.37 | 1.120 | 1.183 | 1.476 | 279 | 229 | 2293 | 175 | 175 | 4 |
| 829901051 | 3/0 | 0.42 | 1.167 | 1.230 | 1.522 | 354 | 295 | 2517 | 200 | 200 | 4 |
| 829901052 | 4/0 | 0.47 | 1.221 | 1.284 | 1.576 | 445 | 360 | 2772 | 230 | 230 |
4 |
| 829901053 | 250 | 0.52 | 1.264 | 1.327 | 1.619 | 527 | 426 | 2997 | 255 | 250 |
4 |
| 829901054 | 350 | 0.61 | 1.359 | 1.422 | 1.774 | 736 | 589 | 3736 | 310 | 305 |
5 |
| 829901057 | 500 | 0.73 | 1.481 | 1.544 | 1.896 | 1061 | 819 | 4517 | 385 | 370 | 5 |
| 829901060 | 750 | 0.90 | 1.646 | 1.709 | 2.162 | 1592 | 1252 | 6069 | 485 | 455 | 6 |
| 840501062 | 1000 | 1.06 | 1.802 | 1.865 | 2.317 | 2133 | 1670 | 7325 | 565 | 525 | 6 |
