MV 105 EPRONAX AL/ EPR/ CT/ PVC 25 kV 100% and 133% I.L.

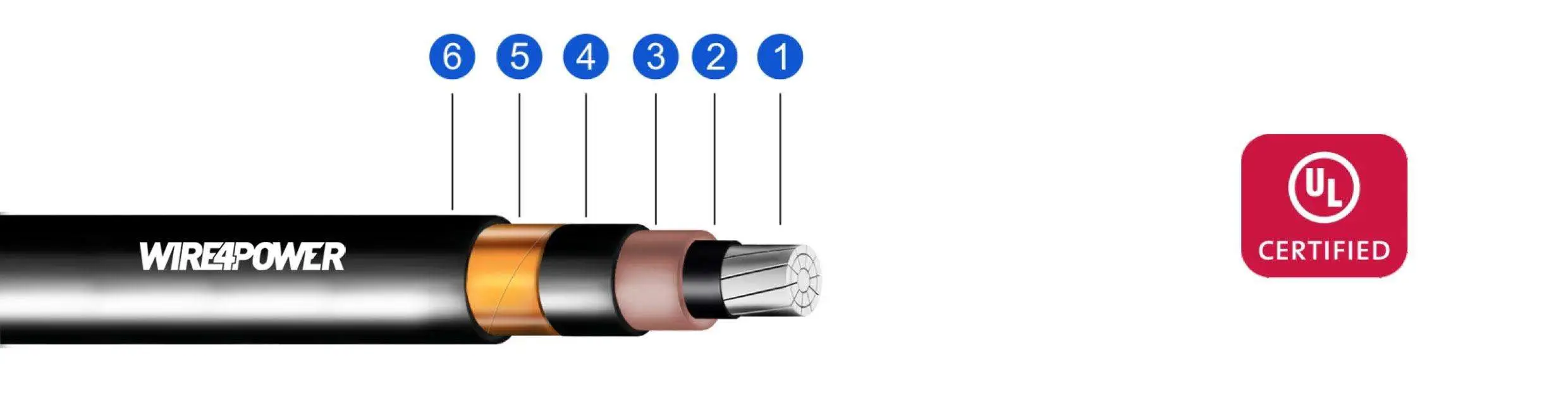

Construction
1- Conductor: Class B compact stranded 1350 aluminum as per ASTM B-400.
2- Conductor shield: Extruded thermoset semi-conducting stress control layer.
3- Insulation: Ethylene propylene rubber (EPR).
4- Insulation shield: Extruded thermoset strippable semi-conducting insulation shield.
5- Copper wires shield: 5 mils bare copper tape helically applied with 25 % minimum overlap.
6- Jacket: black flame retardant, sunlight and oil resistant I polyvinyl chloride (PVC).
Standards
ASTM B-400 - StandaASTM B-400 - Standard Specification for Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors UL 1072 - Medium-Voltage Power Cables
ICEA S-93-639 - 5-46 kV Shielded Power Cable for use in the Transmission and Distribution of Electric Energy UL 1685 - Safety Vertical-Tray Fire-Propagation and Smoke-Release Test for Electrical and Optical-Fiber Cables IEEE 1202 – Flame-propagation testing of wire and cable
Data
ALUMINUM CONDUCTOR, 25 kV 100 % INSULATION LEVEL, 260 MILS
| PRODUCT CODE | COND. SIZE (AWG or kcmil) | NOMINLA CONDUCTOR DIAMETER (inches) | NOMINAL INSULATION DIAM. (inches) | NOMINAL INSULATION SHIELD DIAM. (inches) | NOMINAL DIAMETER OVER JACKET (inches) | APPROX. WEIGHT (lb/kft) | AMPACITY (A) | CONDUIT SIZE (inches) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ALUMINUM | COPPER | TOTAL | CONDUIT IN AIR (1) | UNDERGROUND DUCT (2) | TRAY(3) | |||||||
| 831101048 | 1 | 0.30 | 0.874 | 0.937 | 1.113 | 176 | 204 | 1420 | 150 | 145 | — | 3 ½ |
| 831101049 | 1/0 | 0.33 | 0.911 | 0.974 | 1.150 | 223 | 212 | 1530 | 170 | 165 | 170 | 3 ½ |
| 831101050 | 2/0 | 0.37 | 0.950 | 1.013 | 1.189 | 279 | 221 | 1652 | 200 | 190 | 195 | 3 ½ |
| 831101051 | 3/0 | 0.42 | 0.997 | 1.060 | 1.236 | 354 | 231 | 1805 | 225 | 215 | 225 | 3 ½ |
| 831101052 | 4/0 | 0.47 | 1.051 | 1.114 | 1.290 | 445 | 242 | 1986 | 260 | 245 | 260 | 4 |
| 831101053 | 250 | 0.52 | 1.094 | 1.157 | 1.333 | 527 | 252 | 2141 | 290 | 270 | 285 | 4 |
| 831101054 | 350 | 0.61 | 1.189 | 1.252 | 1.427 | 736 | 272 | 2509 | 350 | 330 |
355 |
4 |
| 831101057 | 500 | 0.73 | 1.311 | 1.374 | 1.550 | 1061 | 299 | 3039 | 430 | 400 |
445 |
5 |
| 831101060 | 750 | 0.90 | 1.476 | 1.539 | 1.775 | 1592 | 335 | 4048 | 540 | 490 |
575 |
5 |
| 831101062 | 1000 | 1.06 | 1.631 | 1.694 | 1.930 | 2133 | 368 | 4868 | 640 | 565 | 690 | 6 |
ALUMINUM CONDUCTOR, 25 kV 133 % INSULATION LEVEL, 320 MILS
| PRODUCT CODE | COND. SIZE (AWG or kcmil) | NOMINLA CONDUCTOR DIAMETER (inches) | NOMINAL INSULATION DIAM. (inches) | NOMINAL INSULATION SHIELD DIAM. (inches) | NOMINAL DIAMETER OVER JACKET (inches) | APPROX. WEIGHT (lb/kft) | AMPACITY (A) | CONDUIT SIZE (inches) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ALUMINUM | COPPER | TOTAL | CONDUIT IN AIR (1) | UNDERGROUND DUCT (2) | TRAY(3) | |||||||
| 833101048 | 1 | 0.30 | 0.994 | 1.057 | 1.233 | 176 | 230 | 1698 | 150 | 145 | — | 3 ½ |
| 833101049 | 1/0 | 0.33 | 1.031 | 1.094 | 1.270 | 223 | 238 | 1816 | 170 | 165 | 170 | 4 |
| 833101050 | 2/0 | 0.37 | 1.071 | 1.134 | 1.310 | 279 | 247 | 1947 | 200 | 190 | 195 | 4 |
| 833101051 | 3/0 | 0.42 | 1.117 | 1.180 | 1.356 | 354 | 257 | 2109 | 225 | 215 | 225 | 4 |
| 833101052 | 4/0 | 0.47 | 1.171 | 1.234 | 1.410 | 445 | 268 | 2302 | 260 | 245 | 260 | 4 |
| 833101053 | 250 | 0.52 | 1.215 | 1.278 | 1.453 | 527 | 278 | 2467 | 290 | 270 | 285 | 5 |
| 833101054 | 350 | 0.61 | 1.309 | 1.372 | 1.548 | 736 | 298 | 2855 | 350 | 330 |
355 |
5 |
| 833101057 | 500 | 0.73 | 1.431 | 1.494 | 1.730 | 1061 | 325 | 3606 | 430 | 400 |
445 |
5 |
| 833101060 | 750 | 0.90 | 1.596 | 1.659 | 1.895 | 1592 | 360 | 4470 | 540 | 490 |
575 |
6 |
| 833101062 | 1000 | 1.06 | 1.752 | 1.815 | 2.051 | 2133 | 394 | 5322 | 640 | 565 | 690 | 6 |
